Xiaomi Mi Youth Nano Smart Router Smallest Mi Wifi Router Portable Router 802.11 Support iOS/Android APP

Found a better price?
In Stock
B6S2R2
Price in points:19 points
Brand: Xiaomi
SGD $1900
Found a better price?
Why us

✅ Fast Delivery in Singapore
✅ Original Items
✅ Certified Bike Mechanic
✅ Quality Verified
✅ Positive Reviews from Customers
✅ After-Sales Service Support
✅ Shop Front Warranty Assurance
✅ Our Service Centre located near TaiSeng MRT
✅ Register your product online for better warranty coverage and services

Description

Description

NOTE: Does not comes with any charger/power adaptor. To be purchased separately!

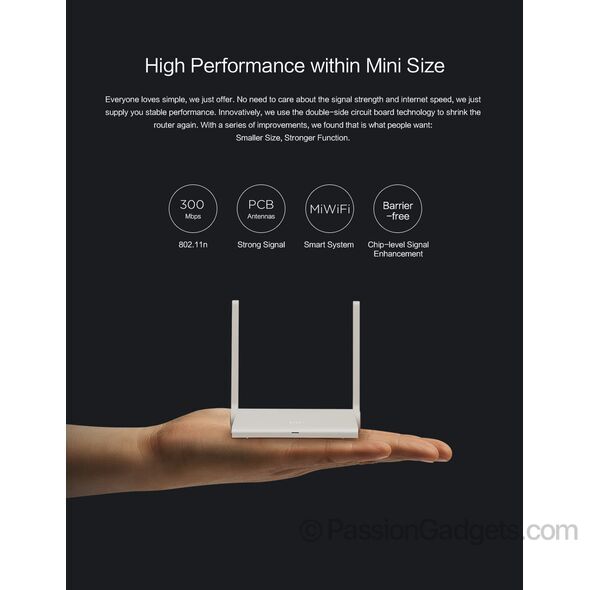

Mi WiFi Nano router White whose length is not more than the credit card, easily fits in the palm of your hand. In this case, the device works stable and better distributes the signal as compared to the larger machines.



Xiaomi Mi Wi-Fi nano has two external antennas providing operation of the wireless network in the area up to 150 square meters. New supports Wi-Fi standards 802.11 b/g/n and data rate up to 300 Mbps.



XiaoMi Youth Edition Mi WiFi Router 2.4GHz 300Mbps with 2 LAN / 1 WAN / Micro USB / 3 Color LED Display Power-in Interface

Parameters

   Color:         White
   Material:     ABS + PC
   Weight:      100g
   Size:           95.32 x 91 x 19.2 mm
   Language:  Chinese
Hardware Configuration
   CPU :                  MT7628N
   ROM :                 16MB NOR Flash
   Memory:              64MB DDR2
   Band and Rate:   2.4G WiFi      2*2 (Max Rate 300Mbps)
Interface
   WAN Ports : 1 x 10/100M Auto MDI/MPX
   LAN Ports :   2 x 10/100M Auto MDI/MPX
   USB Ports :  1
   One Reset Button
   One LED Light
   One USB Power Input
Wireless Parameters
   Band : 2.4GHz
   Wireless Channel :  2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
   Modulation :  11b : DSSS: DBPSK(1Mbps),DQPSK(2Mbps),
                         CCK(5.5/11Mbps)
                        11g : OFDM:BPSK(6/9Mbps),
                         QPSK(12/18Mbps),16QAM(24/36Mbps),
                         64QAM(48/54Mbps)
                        11n : MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

   Receive sensitivity :  11Mbps:≤-90dBm,54 Mbps:≤-72dBm,
                                      HT20 MCS7:≤-69dBm
                                      HT40 MCS7:≤-66dBm,
   Wireless Security:   WPA-PSK / WPA2-PSK encryption,  wireless access control (black list),  SSID hiding,
                                   intelligent anti-rub network,   wireless intrusion detection, password brute force detection,
                                   access control management background
Software Configuration
    OS:   The depth of customization based on OpenWRT intelligent router operating system MiWiFi ROM
    Support : Web, Android, IOS
    Protocol Standards : IEEE 802.11b/g/n/, IEEE 802.3/3u
    Certification standards : GB9254-2008 YD/T993-1998 GB4943.1-2011
